K8S Service Network - 실습

uuuhhh 2022. 11. 10. 15:57

▪ 실습

  1. ClusterIP
  2. NodePort





• ClusterIP

  • 3pod.yaml (목적지 파드)
apiVersion: v1
kind: Pod
metadata:
  name: webpod1
  labels:
    app: webpod
spec:
  nodeName: w1-k8s
  containers:
  - name: container
    image: traefik/whoami
  terminationGracePeriodSeconds: 0
---
apiVersion: v1
kind: Pod
metadata:
  name: webpod2
  labels:
    app: webpod
spec:
  nodeName: w2-k8s
  containers:
  - name: container
    image: traefik/whoami
  terminationGracePeriodSeconds: 0
---
apiVersion: v1
kind: Pod
metadata:
  name: webpod3
  labels:
    app: webpod
spec:
  nodeName: w3-k8s
  containers:
  - name: container
    image: traefik/whoami
  terminationGracePeriodSeconds: 0



  • netpod.yaml (클라이언트)
apiVersion: v1
kind: Pod
metadata:
  name: net-pod
spec:
  nodeName: m-k8s
  containers:
  - name: netshoot-pod
    image: nicolaka/netshoot
    command: ["tail"]
    args: ["-f", "/dev/null"]
  terminationGracePeriodSeconds: 0



  • svc-clusterip.yaaml (서비스)
apiVersion: v1
kind: Service
metadata:
  name: svc-clusterip
spec:
  ports:
    - name: svc-webport
      port: 9000
      targetPort: 80
  selector:
    app: webpod
  type: ClusterIP





  • 동작 확인

💬 생성된 파드 확인



💬 노출된 서비스의 type과 cluster-IP 확인



💬 서비스 endpoint 확인

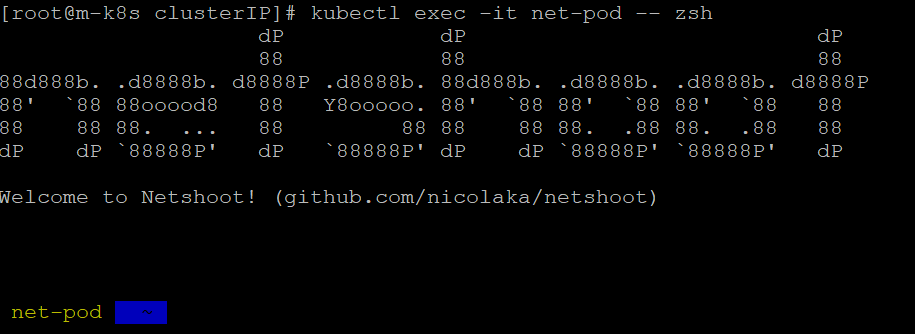

💬 클라이언트 접속



💬 목적지 파드 IP로 접속 확인

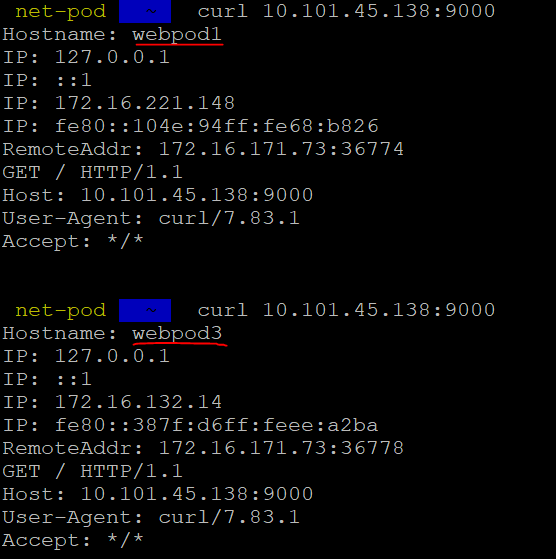

💬 서비스 접속으로 부하분산 테스트 - 1

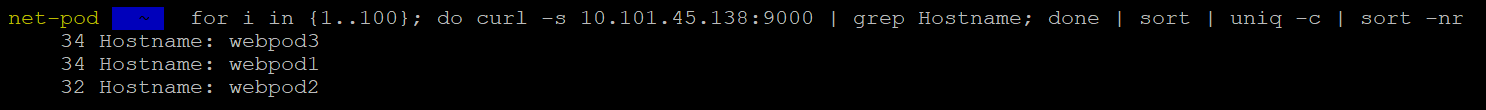

💬 서비스 접속으로 부하분산 테스트 - 2



  • iptables rule 확인
  1. PREROUTING
  2. KUBE-SERVICES
  3. KUBE-SVC-###
  4. KUBE-SEP-#<파드1>, KUBE-SEP-#<파드2>, KUBE-SEP-#<파드3>
  • SEP : SERVICE ENDPOINT
[root@m-k8s clusterIP]# iptables -t nat -nvL
Chain PREROUTING (policy ACCEPT 32 packets, 2248 bytes)
 pkts bytes target     prot opt in     out     source               destination
 1018 70687 KUBE-SERVICES  all  --  *      *       0.0.0.0/0            0.0.0.0/0            /* kubernetes service portals */

Chain KUBE-SERVICES (2 references)
 pkts bytes target     prot opt in     out     source               destination
  208 12480 KUBE-SVC-KBDEBIL6IU6WL7RF  tcp  --  *      *       0.0.0.0/0            10.101.45.138        /* default/svc-clusterip:svc-webport cluster IP */ tcp dpt:9000

Chain KUBE-SVC-KBDEBIL6IU6WL7RF (1 references)
 pkts bytes target     prot opt in     out     source               destination
   71  4260 KUBE-SEP-4GLOYZ5YBL4ZIC54  all  --  *      *       0.0.0.0/0            0.0.0.0/0            /* default/svc-clusterip:svc-webport */ statistic mode random probability 0.33333333349
   69  4140 KUBE-SEP-OSRWDXZKC43CGPGW  all  --  *      *       0.0.0.0/0            0.0.0.0/0            /* default/svc-clusterip:svc-webport */ statistic mode random probability 0.50000000000
   68  4080 KUBE-SEP-X4VKZM5IYTJMJGTP  all  --  *      *       0.0.0.0/0            0.0.0.0/0            /* default/svc-clusterip:svc-webport */

Chain KUBE-SEP-4GLOYZ5YBL4ZIC54 (1 references)
 pkts bytes target     prot opt in     out     source               destination
    0     0 KUBE-MARK-MASQ  all  --  *      *       172.16.103.135       0.0.0.0/0            /* default/svc-clusterip:svc-webport */
   71  4260 DNAT       tcp  --  *      *       0.0.0.0/0            0.0.0.0/0            /* default/svc-clusterip:svc-webport */ tcp to:172.16.103.135:80

Chain KUBE-SEP-OSRWDXZKC43CGPGW (1 references)
 pkts bytes target     prot opt in     out     source               destination
    0     0 KUBE-MARK-MASQ  all  --  *      *       172.16.132.14        0.0.0.0/0            /* default/svc-clusterip:svc-webport */
   69  4140 DNAT       tcp  --  *      *       0.0.0.0/0            0.0.0.0/0            /* default/svc-clusterip:svc-webport */ tcp to:172.16.132.14:80

Chain KUBE-SEP-X4VKZM5IYTJMJGTP (1 references)
 pkts bytes target     prot opt in     out     source               destination
    0     0 KUBE-MARK-MASQ  all  --  *      *       172.16.221.148       0.0.0.0/0            /* default/svc-clusterip:svc-webport */
   68  4080 DNAT       tcp  --  *      *       0.0.0.0/0            0.0.0.0/0            /* default/svc-clusterip:svc-webport */ tcp to:172.16.221.148:80





• NodePort

  • echo-pod.yaml (목적지 파드)
apiVersion: apps/v1
kind: Deployment
metadata:
  name: deploy-echo
spec:
  replicas: 3
  selector:
    matchLabels:
      app: deploy-websrv
  template:
    metadata:
      labels:
        app: deploy-websrv
    spec:
      terminationGracePeriodSeconds: 0
      containers:
      - name: cndk-websrv
        image: k8s.gcr.io/echoserver:1.5
        ports:
        - containerPort: 8080



  • svc-nodeport.yaml (서비스)
apiVersion: v1
kind: Service
metadata:
  name: svc-nodeport
spec:
  ports:
    - name: svc-webport
      port: 9000
      targetPort: 8080
	# nodePort 미지정시 임의 할당 / 30000 – 32767
  selector:
    app: deploy-websrv
  type: NodePort



  • 동작 확인

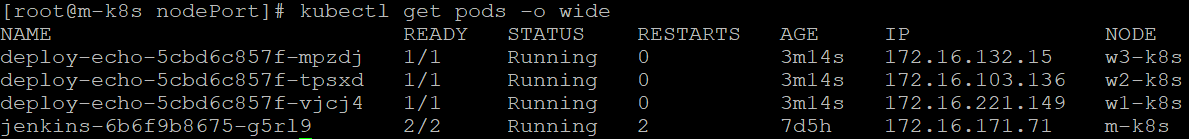

💬 생성된 파드 확인



💬 서비스 확인 (30282 : 서비스의 노드 포트)



💬 서비스의 endpoint 확인





[root@m-k8s nodePort]# ss -4tlnp | egrep "(Process|30282)"
LISTEN   0   128    *:30282     *:*           users:(("kube-proxy",pid=2560,fd=12))

💬 노드 포트 LISTEN 상태 확인





💬 노드 IP 확인



💬 node-IP:nodePort로 서비스 접속 확인



💬 서비스 접속으로 부하분산 확인 + 각 노드들의 <node-IP:nodePort(동일)>로 서비스 접속 확인



  • iptables rule 확인
  1. PREROUTING
  2. KUBE-SERVICES
  3. KUBE-NODEPORTS
  4. KUBE-SVC-###
  5. KUBE-SEP-#<파드1>, KUBE-SEP-#<파드2>, KUBE-SEP-#<파드3>
[root@m-k8s nodePort]# iptables -t nat -S

-A PREROUTING -m comment --comment "kubernetes service portals" -j KUBE-SERVICES

-A KUBE-SERVICES -m comment --comment "kubernetes service nodeports; NOTE: this must be the last rule in this chain" -m addrtype --dst-type LOCAL -j KUBE-NODEPORTS

-A KUBE-NODEPORTS -p tcp -m comment --comment "default/svc-nodeport:svc-webport" -m tcp --dport 30282 -j KUBE-SVC-VTR7MTHHNMFZ3OFS

-A KUBE-SVC-VTR7MTHHNMFZ3OFS -m comment --comment "default/svc-nodeport:svc-webport" -m statistic --mode random --probability 0.33333333349 -j KUBE-SEP-ZFQZV32UODUPBKSN
-A KUBE-SVC-VTR7MTHHNMFZ3OFS -m comment --comment "default/svc-nodeport:svc-webport" -m statistic --mode random --probability 0.50000000000 -j KUBE-SEP-TIDBC43XW5IICFED
-A KUBE-SVC-VTR7MTHHNMFZ3OFS -m comment --comment "default/svc-nodeport:svc-webport" -j KUBE-SEP-2JHZOYSDCT4K5OXZ

-A KUBE-SEP-ZFQZV32UODUPBKSN -s 172.16.103.136/32 -m comment --comment "default/svc-nodeport:svc-webport" -j KUBE-MARK-MASQ
-A KUBE-SEP-ZFQZV32UODUPBKSN -p tcp -m comment --comment "default/svc-nodeport:svc-webport" -m tcp -j DNAT --to-destination 172.16.103.136:8080

-A KUBE-SEP-TIDBC43XW5IICFED -s 172.16.132.15/32 -m comment --comment "default/svc-nodeport:svc-webport" -j KUBE-MARK-MASQ
-A KUBE-SEP-TIDBC43XW5IICFED -p tcp -m comment --comment "default/svc-nodeport:svc-webport" -m tcp -j DNAT --to-destination 172.16.132.15:8080

-A KUBE-SEP-2JHZOYSDCT4K5OXZ -s 172.16.221.149/32 -m comment --comment "default/svc-nodeport:svc-webport" -j KUBE-MARK-MASQ
-A KUBE-SEP-2JHZOYSDCT4K5OXZ -p tcp -m comment --comment "default/svc-nodeport:svc-webport" -m tcp -j DNAT --to-destination 172.16.221.149:8080

# 출발지IP를 접속한 노드의 IP 로 SNAT(MASQUERADE) 처리
-A KUBE-POSTROUTING -m comment --comment "kubernetes service traffic requiring SNAT" -j MASQUERADE
